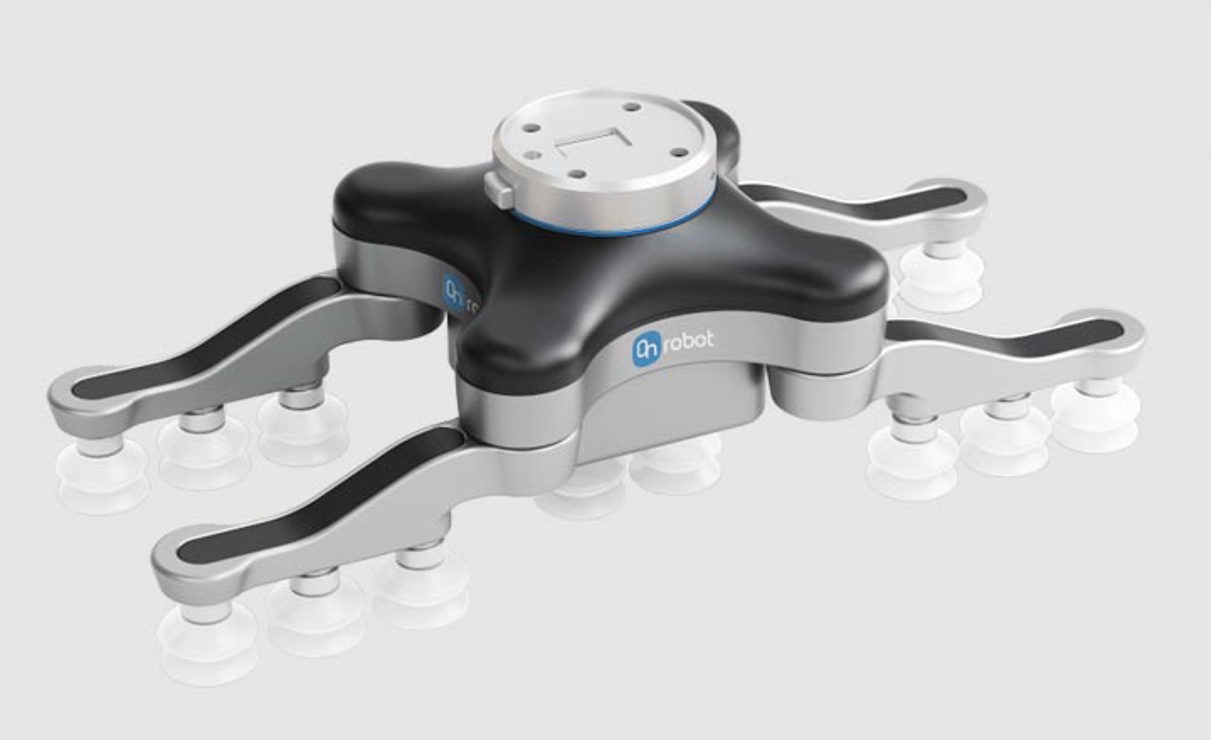

VG10 Gripper
Implementation directly after unpacking – connect to the robot arm and configure the gripper for the product – ensures rapid productivity and return on investment. As there is no need for external air supply, maintenance costs are reduced, and implementation is faster.
Item No. UR/17020
VG10 Gripper
Additional Description
The VG10 is compact and easy to move around as it does not require a compressor or air supply. This provides flexibility in your production and keeps maintenance costs low. The VG10 has flexible arms and adjustable vacuum, allowing it to handle a wide range of objects in various sizes. It is a dual gripper, where you can control the right and left sides of the vacuum gripper independently, thereby further increasing efficiency in your production.
Seamless integration with a robot of your choice. The gripper comes with a dual grip function, tool changer, and a wide range of suction cups. Additionally, there is a large selection of suction cups from other manufacturers on the market that fit all applications.
Advantages and Features of the VG10 Vacuum Gripper
The VG10 vacuum gripper is an end-of-arm tool (EoAT) designed specifically for collaborative robot solutions. The adjustable vacuum and gripping arms of the VG10 make the tool ideal for tasks involving workpieces of various sizes and shapes.
The VG10 is a dual suction gripper, meaning you can activate the right and left sides of the vacuum gripper independently when performing different tasks. This speeds up cycle time while optimizing the overall efficiency of your production.
Configurable suction cups
The suction cups can be easily changed to suit your application needs.
Integrated software
The gripper comes with pre-integrated software that is easy to install and program, allowing even non-technical personnel to set it up.
Built-in electric vacuum
No need for external air supply - this keeps maintenance costs down.
Payload 15 kg (35 LB)
Can lift objects weighing up to 15 kg.
Independent air channels enable dual gripping
Control the right and left sides of the vacuum gripper independently, thus increasing efficiency in your production.
